nbn Fixed Wireless – Non Standard Installations

The Regional Tech Hub have the latest information here

What to check when the installer comes

The following are some notes regarding nbn Fixed Wireless non – standard installations.

Please remember that each non-standard install is assessed on a case-by-case basis by nbn, nbn are currently reviewing their non standard install protocols. Current protocols can be found here under Non Standard Install Processes. Some of the non-standard installs pictured on the BIRRR website may no longer be approved by nbn.

In the event that the ‘standard installation’ procedure fails, the next steps are:

Check that the installer has tried to get a strong enough signal on all areas of the roof of the main residence or the premises/ shelter where you wish the nbn equipment to be installed.
Ask if the installer has checked in all directions, in the case that there may be other local nbn sites. If the answer is no, please request this or discuss it with the installer.
Ask the installer if there is any other location on your property where the signal may be strong enough to connect.
Ask if the installer has tried a 3 metre mount to get a stronger signal at the locations. If the installer does not have a 3 metre mount, please request that they return and try again with a 3 metre mount. You may need to make a new appointment with your service provider for this as well. Note: A 3m mount can only be installed on tin rooves with a pitch of <30°
Indicate whether you are prepared to take other steps (at your own expense) to get a service. Make sure you have approval from nbn before carrying out any work for a non standard installation. For example:
- Build a shelter specifically to house the equipment and then relay the data to your main location / homestead. Note: A wireless relay of the data will be required, if the total cable length from Outdoor Unit (ODU) to Indoor Unit (IDU) run is greater than 100m. See note below regarding Wireless Relays. nbn currently mandate a 240v supply for the fixed wireless NTD. The nbn wireless NTD consumes 25 watts. nbn are looking into other power supply options for rural users.
- Dig a trench to take cable from one building where signal is sufficient, back to the main location on your property. It must be trenched and the cable run through White Communications Conduit. The maximum cable run between the outdoor unit and the indoor unit that nbn provides is 70m (Category 5 cable) or 100m (Category 6 cable).
- Install a tower / pole to install the equipment on. Note: The installer needs to accurately identify the location with photos, latitude/longitude etc, plus height of ODU to achieve a suitable signal.
- Use a cherry picker or similar equipment to provide access to the location where the installation might be achieved.

6. Ask if the installer has any advice for how to get a sufficiently strong signal anywhere on your property

7. Ask if the installer knows whether your neighbours have an installed service and, if so, what the difference is between your location and theirs.

8. Specifically ask the installer not to log the job as a Service Qualification failure, but to log it as a non-standard installation if they are not able to complete a non-standard installation appointment on the day.

9. If all efforts on the day still do not work, you will need to call your service provider to arrange a new non-standard appointment. It is important that you are clear with the service provider that you need an appointment for a non-standard installation.

10. In the event that all installation attempts fail, you may be able to access a neighbour’s nbn service. If applicable, you may wish to approach your neighbours and ask if they are willing to allow you to order a second service, at your expense to their location. nbn Fixed Wireless supports up to four (4) separate services to one set of installed equipment. If that is OK with you and your neighbour, you may then be able to relay the service to your own residence via a wireless link. There is commercially available equipment that operates wirelessly and may be able to relay the nbn service to your location, provided your neighbours are willing. nbn does not provide this equipment and is not able to guarantee the results.

11. It is also possible to get a second NTD installed at another location / property in the case that this is needed (for example if the four data ports on the installed equipment are being used or your neighbour would prefer not to have your equipment located in the same place as theirs). This can be done by asking your service provider to get a second location ID assigned to a location / premises so that the nbn equipment can be installed

12. Installers are sub-contractors to nbn and may be of varied experience. The majority of the installers are seasoned professional contractors and take this role very seriously. If you believe that you are not getting a professional experience or that the installer does not present themselves in an acceptable way, please let your service provider know so that nbn can track and improve installer behaviour and the installation experience. nbn manage the performance of the installers and are always keen to hear when there are issues so they can help to identify and improve poor experiences and poor behaviour. nbn instructions are to always do everything installers can to help an end user get the Fixed Wireless service, if possible.

WIRELESS RELAYS

A wireless gateway or bridge can span up to 50km with direct line of sight. The gateways can be set up before being sent out. Then all the customer has to do is find a good location for antenna and run some cable to power point (240 volt power must be supplied) and turn the unit on. If it’s under 200 to 400 meters you only need one if its over 400 meters then it is recommended to use two, one as an access point and the other as a station. Wireless Gateways are generally under $300 per unit. A wireless relay can be supplied and installed by telecommunications specialists, or they or can be shipped out with full instructions so people with a bit a knowledge and handy man skill can do the install themselves.

12109014_1192205484128902_6943964446156355563_n — Fixed Wireless Gateway

For more information on Wireless Relays Contact your nearest installer / technician from the BIRRR list here or from Telco Antennas

PLEASE NOTE: If the non-standard fixed wireless service has trouble after installation and needs repairs or fine tuning, installers must be SAFELY able to access the location. The means to achieve this must be borne by the customer.

Useful BIRRR Fact Sheets for Non Standard Installations:

*Please note, while all care has been taken in compiling BIRRR documents, we recommend that you check with nbn or your ISP regarding your own connection issues. Thanks to nbn for assistance in compiling this document. Information has been obtained from nbn, Skymesh, Whirlpool forums and BIRRR members.

Troubleshooting your Fixed Wireless Internet Connection

Optimise your nbn Fixed Wireless service’s performance with this troubleshooting guide from nbn. – please click here to download the document.

Jacob’s Story – Sharing Internet Connections with Neighbours

Sharing Internet Connections with a Wireless Bridge
by Jacob Johnson

This document shows three different examples of how an enterprising BIRRR member has helped himself and others share internet connections via a WIFI link.

I have a fixed wireless connection and share to my neighbour who had a failed install 300m away through some thick trees. I also set up the same system between another two neighbours in the same situation. My speeds are slightly affected but only because we are sharing a single connection. We did this because it was cheaper that way. My neighbours don’t download anything just watch Netflix occassionally. The nbn NTD can support up to 75mbit so it is not a problem if both properties are on the 25/5 plans but you may experience slightly slower speeds if both were on a 50/20 plan downloading full speed.

A 300m 2.4Ghz WIFI link – nbn FIXED WIRELESS

jj1 — A newly installed nbn™ Fixed Wireless ODU with a Ubiquiti Nanostation attached to the Fixed Wireless mast.

MY HOUSE: This was originally a temporary mount for the Nanostation, but it appears to work perfectly with no interference; so it may stay! It is directed to the ‘clothes line’ Ubiquiti Nanostation shown below.

The picture above shows a newly installed nbn™ Fixed Wireless ODU and a Ubiquiti Nanostation attached to the Fixed Wireless mast. The Ubiquiti nanostation is used to transmit the Fixed Wireless connection over WIFI from this location

The Nanostation WIFI link connects to the ‘clothes line’ Ubiquiti Nanostation shown below.

jj4 — The clothes line Ubiquiti is connected via Ubiquiti tough cable running through a conduit to home.

NEIGHBOUR 1:

The clothes line Ubiquiti is connected via Ubiquiti tough LAN cable via underground conduit, to the home. The home roof was not suitable for the WIFI link as it had too many trees in the signal path and the clothes line was a cheap pole on which to mount the Nanostation.

The 2.4Ghz link is ~ 300m and the wireless receive signal level is 63dbm. That is an excellent result.

2. A 350m 2.4Ghz WIFI link – nbn FIXED WIRELESS

NEIGHBOURS 2 & 3:

The next two photos show a link which shares fixed wireless between two of my neighbours. It passes through a grove of trees, but the signal is perfect. The house roof ones aren’t solar powered, a cat5 cable runs down into the house, into the poe port of the Ubiquiti power injector.

jj2 — The 2.4Ghz link distance is ~ 350m and the receive signal level is 65dbm.

An excellent result.

3. A solar powered 3G Installation and 2.5Km 5Ghz WIFI link – MOBILE BROADBAND

This WIFI link delivers internet from a solar powered 3G modem and router installed on an elevated ridge. Internet is beamed down to a site that has no mobile reception via a WIFI link.

The 5Ghz link is ~ 2.5km and the receive level is 60dbm.

Prepared for BIRRR by Jacob Johnson & John Kitchener

Chris’ Story nbn Standard Fixed Wireless

I came across the BIRRR group only recently (after the ABC LandLine segment ) and it was an absolute blast of moist fresh air across the barren land of data drought. The effort behind the website is its real strength. The fact that all you have real lives and family and many, many demands on your time and yet have made such am impact in many ways is an incredible testament to your talent and dedication.

What I like about BIRR is that:
· It brings people together to share their stories of data drought and the communication problems in modern rural, remote and regional Australia

· It does meticulous research, calling on experts, thoroughly researching the problems and liaising with professionals. The fact that BIRRR does not shout out a particular opinion or give solutions that have been just heard about in the local pub makes it a credible and reliable resource.

· It caters for the full range of RRR needs on the comms front – Phones, Mobiles, FW, Satellite, etc etc

· It’s willing and able to help individuals with individual problems (where do you all get the time and energy??)

· It places an emphasis on the needs of education in our RRR communities

· the webpage has a user-friendly design and is really easy to navigate. Articles and posts are dated and authorship / info sources attributed

· It has an important policy for fb and twitter posts that they are to be respectful, not rude and not (too) politically biased

Back in the early 20th C when the phone first came to central NSW my grandparents were doing mixed farming around the Forbes area. Their technological highpoint for communications was a party-line that ran through about 12 properties. Everyone shared the one line and had an individual combination of rings for them to know a call was for them. Haven’t we come a long way! Haven’t we got a long way still to go.?

My particular interest has been Fixed Wireless and if not for the contribution of BIRRR I would have given up and gone back to two tin cans with a string between. We failed our first signal test * but are now back on track with a new RSP (suggested by BIRRR) and, with luck, by the end of the year should be on the nbn. Great for us. But what of the so many others who are far worse off? All strength to BIRR and may it continue until we all have a decent and affordable means to communicate, help educate our kids, do business, and (dare I mention it?) be entertained!

UPDATE 3/12/15: A thousand thank you’s to Kristy Sparrow and all the installers who visited our place, and the brilliant folks at Aussie Broadband and the BIRRR community. We’re now on the NBN FW in South Gippsland. It was a difficult journey but we got there. We can run our business, communicate with our friends, and have much lower stress levels about going over our data limit. When the grandkids come to stay they are happy too.

* Chris was able to get the correct signal strength when nbn changed the fixed wireless parameters from -96dbm to -99dBm

Prepared for BIRRR by Chris Downes

Kain’s nbn™ non-standard Fixed Wireless Install

Kain’s Story:nbn™ Fixed Wireless non-standard install

My experience started about 8 months ago. After numerous articles in the paper, ads on TV and radio, the letterbox pamphlets and all the typical fanfare that happens with a new technology, the NBN was finally available in the area my family’s property is in! It would be a huge improvement on the slow ABG Satellite and expensive yet unreliable mobile broadband that we had at the time.

After comparing plans, we chose a provider and signed up. Surely if we could get mobile coverage we could get fixed wireless……. But it was not going to be that simple. When the installer came out to do a signal test, the result was not good, -106dBm. The cutoff was -96dBm. No install for us. After calls to the RSP, NBN etc,the verdict was we’d have to wait for the satellite service. But, being as stubborn as I am, I started doing a bit of research to work out why we could not get it. After researching the tower locations on the mynbn.info website and checking on Google maps, I worked out the signal was blocked by a granite ridge behind the house. What about a mast on the hill I thought? More calls to NBN and the result was bad luck, we were listed as unable to get NBN. They wouldn’t send a tech out for another signal test, even though I could literally see the NBN tower from the top of the hill. Very frustrating!

Kain — The tower, clearly visible from the top of the hill

Fast forward a few months, I was put in touch with the team from BIRRR who not only had some great resources and information available on the page, but also worked hard to get us re-listed as Service class 5 (NBN Fixed wireless available, no NTD Installed) so that we could book another install!

Not wanting another fail, I studied as much as I could on fixed wireless technology, installation requirements etc. These can be found on the BIRRR pages, NBN Website, Whirlpool forums, ACMA Website etc. But to summarise; here are a few requirements:

You MUST be located within 14KMs of an active NBN Fixed wireless tower. Line of sight is recommended, as the frequency used is affected by terrain. Solid terrain such as hills etc will degrade the signal heavily, as will thick bush land. A few gums etc. will affect it but not as badly. It is the water in the foliage which interferes.

For a pass, the signal has to be at least -96dBm. The lower the number, the better the signal eg. -70dBm is better than -80dBm. Since this time, the cutoff point has been increased to -99dBm.

The install has 2 main components, the ODU (Out Door Unit, a panel antenna and modem) and the NTD (Network Termination Device). The maximum cable run between the 2 units cannot be more than 80 metres. This is the cable run, not the distance “as the crow flies”. The ODU has to be mounted where it gets a strong signal from the tower. The NTD must be mounted within 1.5 metres of a 240v power supply in a weatherproof enclosure that does not get too hot or cold.

The cable joining the two components must be run through white telecommunications conduit with no sharp bends at a minimum depth of 30cms underground from the building housing the NTD to the mast/building where the ODU is located. It needs to have a string line run through from one end to the other to feed the cable through, and this is much easier to do as you are joining the conduit as opposed to trying to feed it through the whole length.

If a mast or tower needs to be erected, it is the responsibility of the owner to have it in place and meeting any local legal requirements. It must be sturdy. A 10 metre length of gal pipe tied to a star-picket is a no-go… I would recommend buying a proper radio tower if needed. These can be sourced from Hills, Nally towers etc.

The installer is not responsible for ensuring access to the mounting location, the property owner is. This means if it is to be mounted on a 14 metre mast, the owner has to provide a cherry picker on the day of the install. No installer will climb a 14 metre tower, especially a home-made one.

NBN responsibility stops at the NTD. If you need to get the internet from that location to another location or to multiple devices, this has to be arranged by the owner at their own expense.

There may be things I have missed… I recommend doing your research and double-check everything. There are a lot of resources available on the BIRRR page including a guide to fixed wireless installs, both standard and non-standard.

Now that I had all the info required, I could get everything ready for the install.

STEP 1: My first step was to put a building on a spot on the property where I could get a strong signal. After a bit of hunting around, I bought a cheap caravan for the purpose. My reasoning for this was that a caravan can be parked anywhere on your property without council approval providing nobody is living in it, whereas building a shed would need a development application approved. Check your local council regulations on this, as it may vary. I parked it as close to the top of the ridge as I could.

STEP 2: The second step was to put up a mast with line of sight to the tower. Since I had the van close to the ridge, the mast only needed to be above the height of any stray kangaroos etc. So I went with a 3 metre length of 1” galvanised pipe cemented 60cm into the ground, remembering the conduit end.

STEP 3: Digging the trench proved to be difficult, as the 20 metres closest to the mast was full of bush rock. There must have been about 10 ton of rock that I pulled out with a 4×4 bit by bit. After the trench was done, I ran the conduit. This was proper NBN Conduit available at a local electrical wholesaler for about $1/metre in 4.5 metre lengths. To make it even simpler for the installer, I ran the cable as I was going. This meant purchasing it myself, but it was a time-saver and on the day of the install the tech was grateful it was done. The cable has to be outdoor gel-filled Cat5e ethernet cable. I purchased this from an electrical supply store in Sydney at 88c/metre.

STEP 4: Due to the location, running a 240v power supply from the house to the van was not practical, so I installed a 250w solar panel and 330Ah battery bank with a sine-wave inverter for power. Being over the 90 metre limit for Ethernet to the house, I decided that a wireless bridge was the logical step. When setting these up, you have to be careful not to exceed the maximum power limit of 4 watts EIRP for broadcasting, or the ACMA can hit you with massive fines. If you are going this route, I would recommend getting it installed by a professional if you are not experienced with wireless networking.

Now that all the prep work had been done, I booked an install through SkyMesh (who I have to say are brilliant to deal with, it’s a good change waiting on the line for just a few minutes and talking to an Aussie) and on the 30^th of December 2015, the tech showed up on time, did a quick signal test and the result was great… -60dBm! Well within the limits.

Within an hour it was all installed and after a bit of a wait, we were activated!

After all that work, there was a happy ending!

These speeds are about the average we receive now, and so far the setup has proved to be fairly reliable.

I would like to thank Kristy Sparrow and the team at BIRRR, Skymesh and NBN. For making this possible and turning an extremely frustrating situation around for a positive outcome.

Disclaimer: This document is meant as an informative document based on my own research and experience. Any views, opinions, information etc. provided is not necessarily the same as that provided by NBN Co, BIRRR, SkyMesh or any other organisation referred to here. Prepared for BIRRR by Kain Fitzgerald.

nbn Fixed Wireless – Standard Installations

WHAT IS FIXED WIRELESS?

nbn FW (Fixed Wireless) is a fixed wireless service – it is delivered by radio communications, via antennas that transmit a signal direct to a small outdoor antenna attached to the premises. It is a different technology to mobile broadband / wireless internet.

Fixed wireless (FW) does not provide mobile phone service, and can not be moved (hence the term ‘fixed’).

The Regional Tech Hub have the latest information here.

ARE YOU ELIGIBILE?

Check your address for FW eligibility here: nbn : Check your Address

GETTING FW ORGANISED

If you are able to obtain an nbn FW service at your address (if you are in the fixed wireless coverage area) you will need to contact a RSP (Retail Service Provider) also known as ISP (Internet Service Provider) to arrange for the equipment to be installed. (nbn is an internet wholesaler and does not provide internet services directly to the public.)

A technician (nbn contractor) will be booked by the RSP to install the equipment. In the case of faulty equipment or connection problems you will need to contact your provider (not nbn).

POSITIONING CONSIDERATIONS
The best place for your indoor Network Termination Device is one that is:

Near your existing phone or network cabling or devices that you will use the most
Within 1.5 metres of a dedicated 240V power point (a mandatory requirement)
In a cool, dry, ventilated area
Away from busy areas where it may be knocked and damaged
Where it will be easy for you to check the indicator lights if there is a problem

Customers who wish to make use of a VoIP service over the nbn connection will have additional considerations (i.e. be close to existing phone cabling). BIRRR recommends that you maintain your exisiting phone service and NOT switch to a VOiP Based service.

In order to obtain nbn fixed wireless service you must be able to receive and transmit minimum levels of wireless signal between your property and a base station. Currently a signal test reading of -99dBm is needed. A signal of -99dBm or stronger will result in an install of nbn equipment. The lower the number the stronger the signal ie -76dBm is better than -99dBm and anything over -99dBm will be signal failure.

You may need a mast to get an nbn fixed wireless signal. This is still a ‘standard’ nbn installation, however the installer may need to come back with the right sized mast.

All FW equipment is the property of nbn and should not be moved or adjusted.

CONNECTING YOUR FW EQUIPMENT

The next step once the nbn Fixed Wireless equipment is installed will involve connecting your Internet access equipment. The antenna on the outside of a home will be connected by a cable running through the wall to the Network Termination Device (NTD) which will be located within the home. If you require WiFi from your nbn FW connection you will need to purchase a wireless router. BIRRR recommends purchasing a ‘plug and play’ router from your provider.

In the event that the ‘standard installation’ procedure fails you can consider a ‘non-standard’ install. Please read the BIRRR Notes on nbn Fixed Wireless: NON-STANDARD INSTALLATIONS

Enhancing Mobile Broadband Service

This article is a resource for people seeking information on mobile broadband services in Australia. Mobile Broadband is a different technology to NBN Fixed Wireless.

Screen Shot 2015-11-12 at 9.26.19 PM

This guide covers information relating to:

mobile terminology
how to enhance mobile coverage, and other resources.

Connecting to Mobile Networks in the Rural Environment

STEP 1: Locate your local tower: to find your closest tower using the following link:

RFNSA

The following online guides are recommended for a step by step process to finding towers near you. The two guides below each take a slightly different approach at some steps, so read both and work out what works best for you.

Telco Antennas Tower Locating

On Wireless Finding Mobile Phone Towers

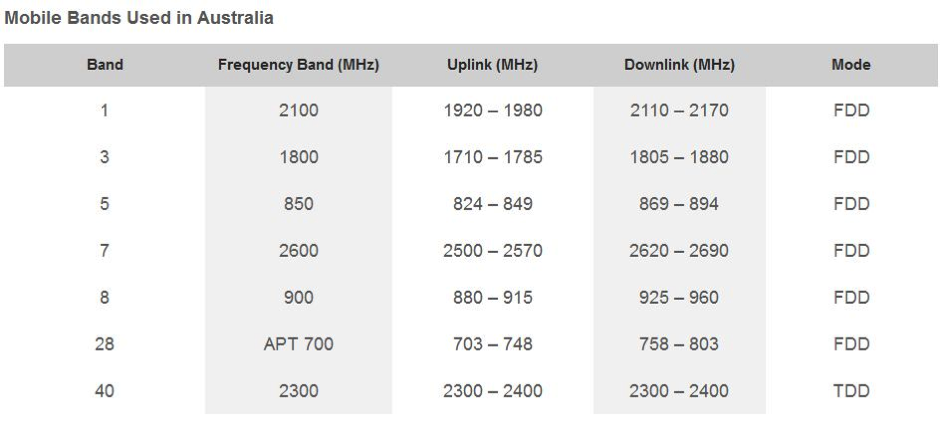

Australian mobile bands and frequencies available in 2020:

The carrier bandwidth is the single greatest determinate of how fast the mobile data service may operate. There are other factors such as signal strength, Carrier Aggregation and frequency of operation that also affect the speed of service and the distance that the service may be available from the tower.

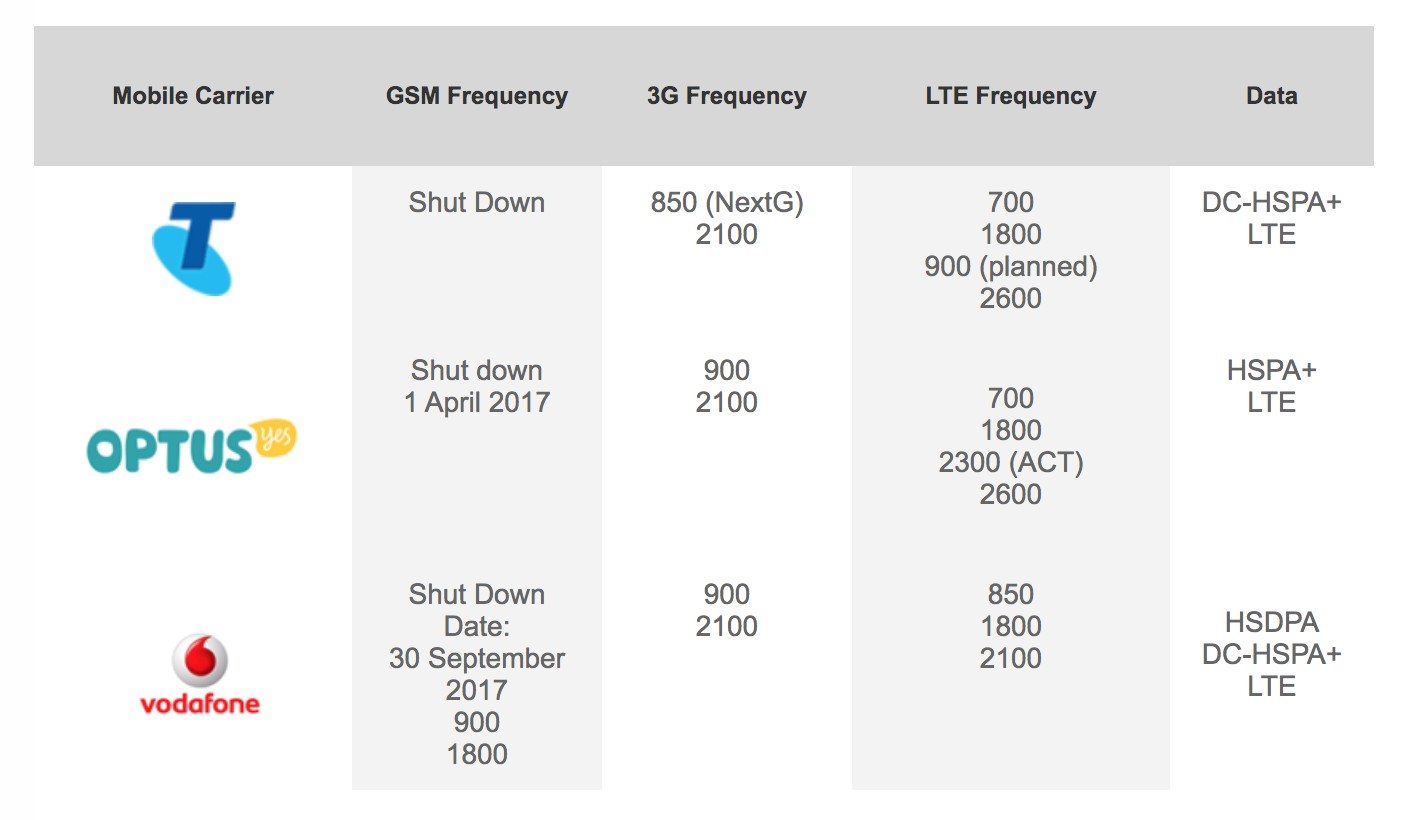

Screen Shot 2020-08-02 at 11.53.44 AM — Australian Mobile Phone Providers & Networks Used

The Coverage Maps of each Australian mobile carrier can be found here:

Telstra

Optus

Vodafone

The following Australian Mobile Network Guides are useful guides on how to enhance and improve your mobile service:

Guide to Improving Mobile Signal

Guide to Improving Mobile Speeds

Guide to improving Mobile Reception

A desktop site survey can assist you with determining if there is mobile reception in your area and what equipment might be needed to connected.

Telco Antennas desktop site survey cost is $99.

One Wireless desktop site survey cost is $99.

The above businesses can then put you in touch with a specialist in your area who understands the requirements for your state. The report will advise likely signal levels, the sort of mobile services available, the best antenna and extension device for your location and where to point your antenna.

STEP 2: Select the Correct Equipment

See the BIRRR Guide on Selecting the Correct Antenna & How to Point It

Telco Antennas also provide information on antenna and network extension specialists throughout Australia. Please contact them directly for advice on equipment and installers.

What is Legal ?

If you can get some mobile coverage at your location, a network extension device may assist you in boosting your signal.

Passive antennas are usually mounted on the roof (e.g. yagi antennas) and do not require licensing.

Active antennas such as the Celfi’s and Smart Antennas (that require power) do require licensing. If they are not licensed they are ILLEGAL boosters.

Illegal boosters carry a large fine as they can interfere with the mobile network.

” It is an offence under the Radiocommunications Act 1992 (the Act) to operate an unlicensed radiocommunications device, or possess this device for the purpose of operation. A person found guilty of this offence may be imprisoned for two years for each offence. A body corporate may receive a penalty of up to $270,000 (1,500 penalty units) per offence (sections 46 and 47 of the Act). Other penalties may apply, such as the interference offence provisions at Part 4.2 of the Act.” ( ACMA )

Still need more info ? Check out Telco Antennas Frequently Asked Questions

How to extend a mobile data service from a mobile reception location (hill etc) to home

A solar transponder or a mobile data relay may be installed to relay internet from a mobile friendly location on your property back to your home. Here is one DIY example

12132618_10207831944658546_5477522077073363806_o
